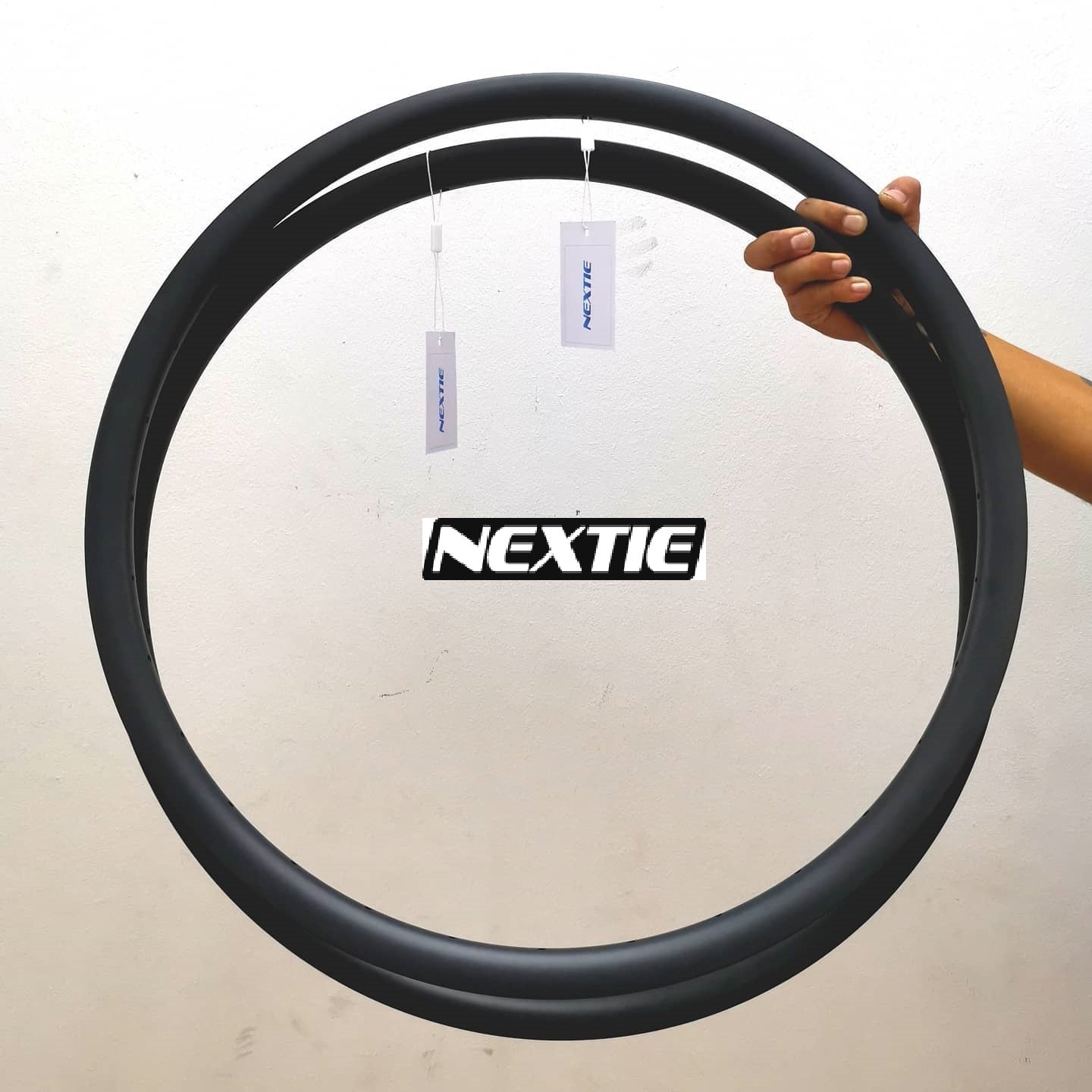

Nextie Premium Asymmetric Carbon Rims - 27mm
For all the Premium Edition rims, certainly we do improvements over traditional-tech carbon rims.
1. Materials: T800 carbon fiber added to Premium Edition rims;
2. Optimized the layup system mixing T700 & T800 carbon fibers after many times of producing, testing, producing and testing, found a best impact resistance over durability and tenacity.
3. We made a single mold to layer up the spoke bed wall. The flatness of rim channel surface significantly improved so that thickness at each spoke hole completely consistent. It effectively prevents the carbon loop of spoke hole wall from shifting;
4. Each of rim would be attached with a card showing the flatness and roundness. The flatness and roundness are controlled quite well. Flatness is controlled within (+/-0.15mm), and oundness within +/-0.2mm, easier to tune when do wheelset assembly;
5. Three year warranty offered for Ultralight and Premium Edition rims.
Item #: NXT29XMA33"/ NXT27XMA33"
Material: Toray T800 + T700 Carbon Fiber
Rim Type: Clincher / Hookless
Warranty: 3 Years
Size: 29" / 27.5"
BSD: 622mm / 584mm
ERD: 591mm / 553mm

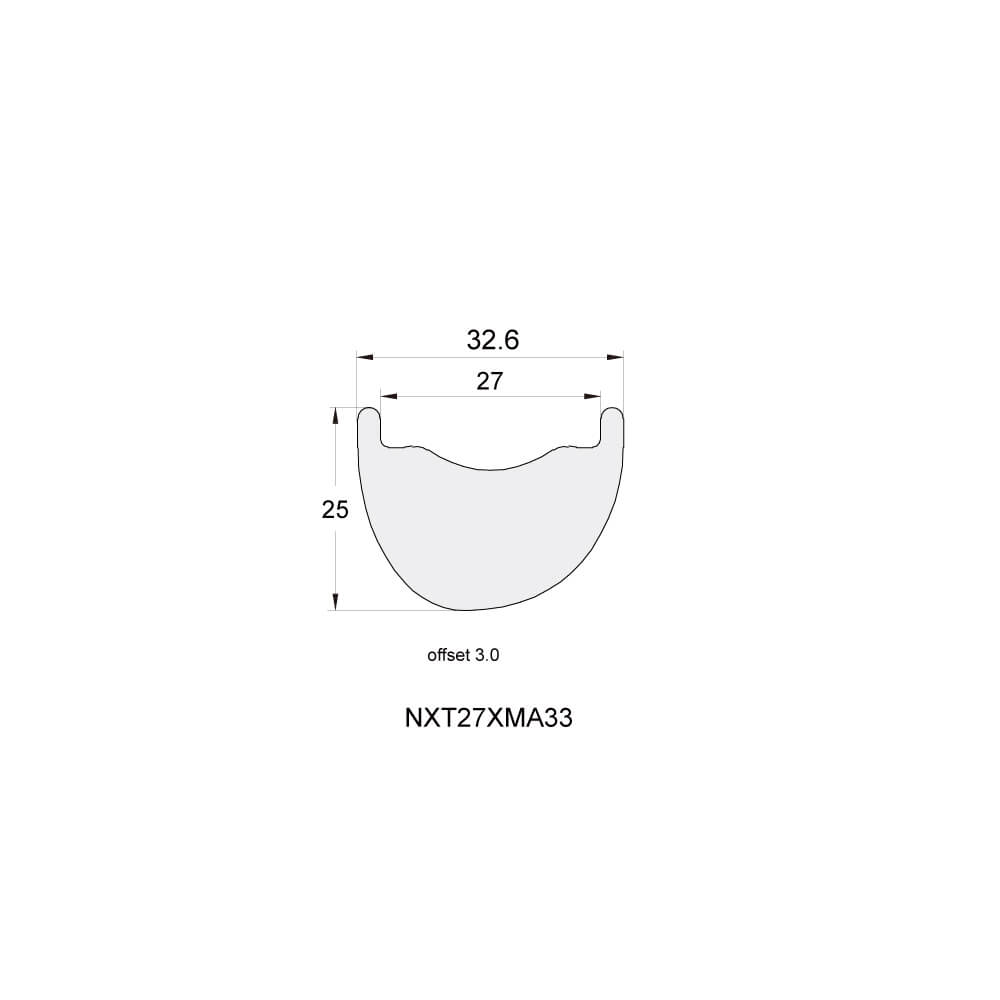

External Width: 32.6mm
Spoke Hole Dia.: 4.5mm
Valve Hole Dia.: 6.5mm
Weight: 370g / 350g
Hole count: 32H
Rim Lip Thickness: 32.8mm
Tire Size: 2.0" ~ 2.55"
Max Spoke Tension: 130kgf
Weight Limit: 110kg
Max Tire Pressure: 60psi
XC / AM / Trail / Enduro
Tubeless Compatible: This function allows you to run tubeless perfectly.
AIO System: The AIO (all in one) system is another technical method to strengthen the rim by using long and continuous carbon fiber layers to wrap into rim. For only one overlap of a layer circle, not only can it keep the original continuous strength of carbon fiber layers, but also it saves weight.
