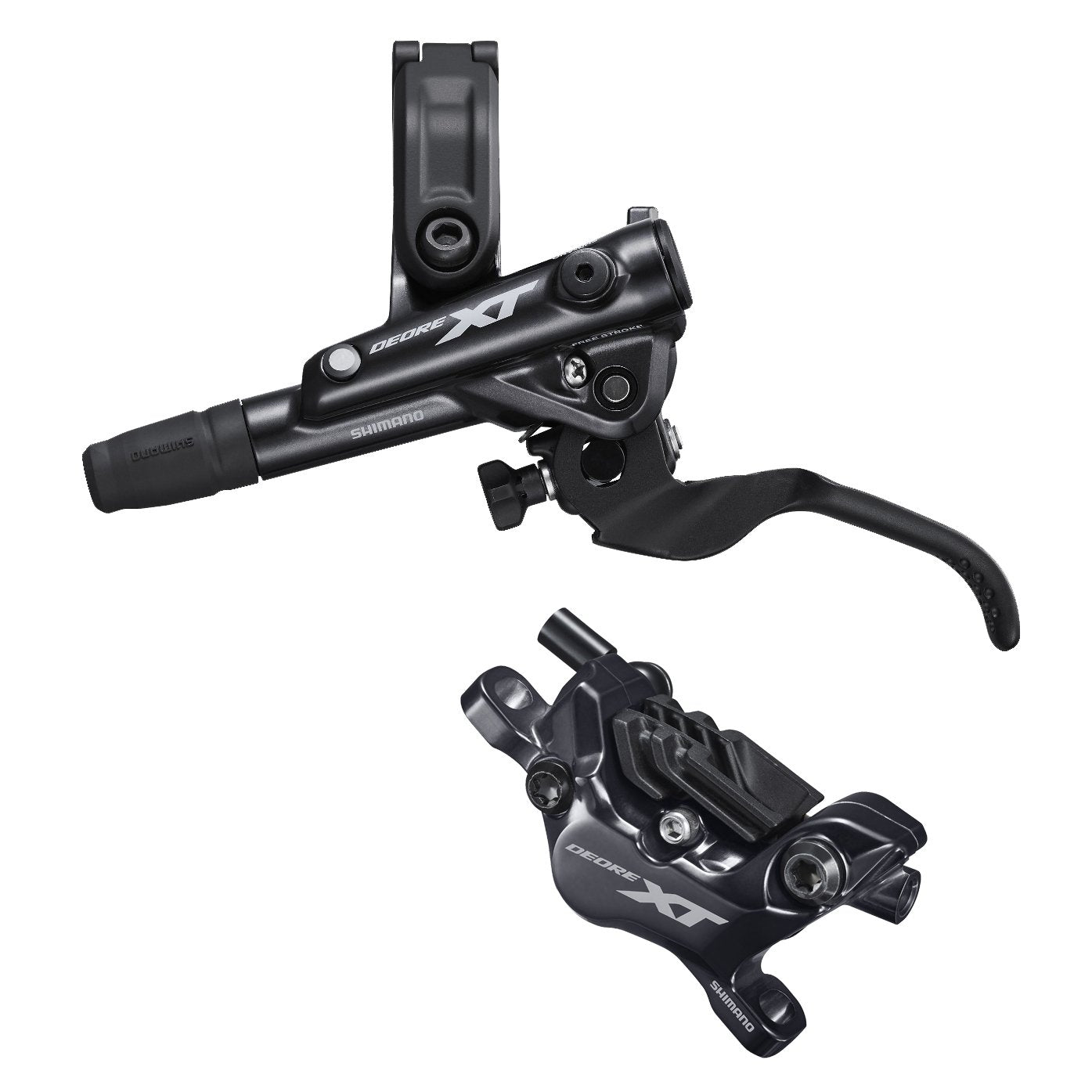

SHIMANO DEORE XT - 4-Piston - ICE TECHNOLOGIES - Hydraulic Disc Brake Caliper
The SHIMANO DEORE XT M8120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control.
-
FEATURE
- Quicker Piston retraction
- Reduces disc brake rotor wobbling noise and increases braking power by 10% (vs. M8000)
- Four Piston
- Banjo type connection and inside hose routing
BENEFIT- Superior modulation gives you greater control
- High braking power instills greater downhill confidence and control
- Quick and easy assembly

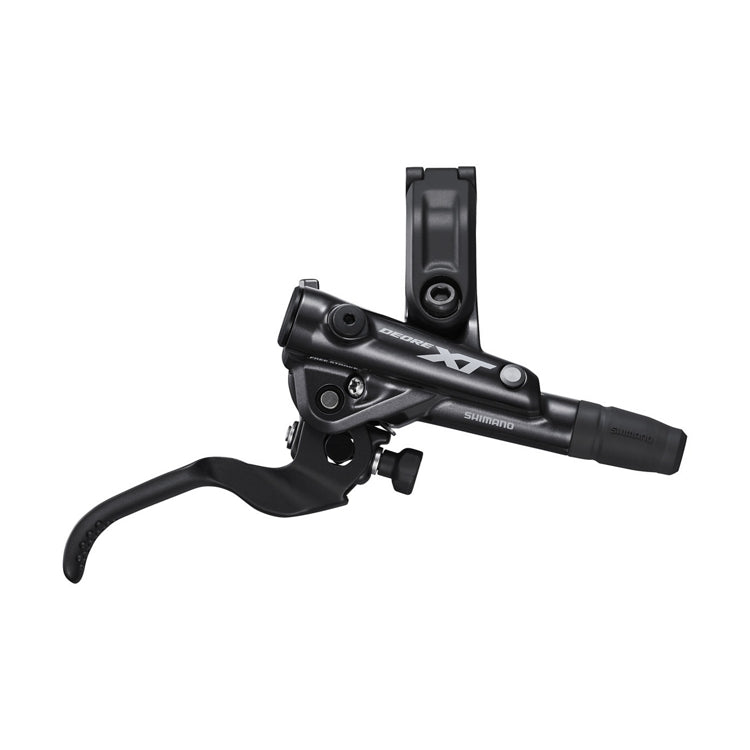

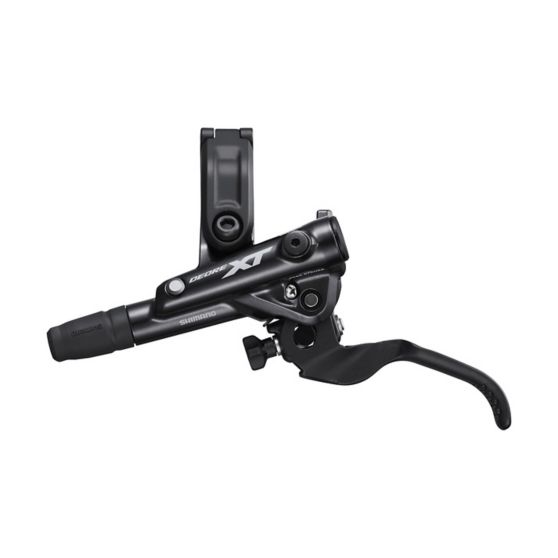

PRODUCT SPECIFICATIONS - LEVER
| MODEL NO | BL-M8100 |
|---|---|
| SERIES | SHIMANO DEORE XT M8100 Series |
| Color | Series color |
| Average weight | 392 g (BR-M8100), 410 g (BR-M8120) |
| Brake hose (Kit) | SM-BH90-SBM |
|---|---|
| Brake Type | Hydraulic disc brake |
| Clamp band_Open clamp band | ✔ |
| Compatible shifting lever mount_I-SPEC EV | ✔ |
| Compatible Shifting Lever Mount | Clamp band, I-SPEC EV |
| Free stroke adjust | ✔ |
| Funnel bleeding | ✔ |
| Hose joint | Straight |
| J-kit option available | ✔ |
| Lever size (Finger) | 2 |
| Oil | SHIMANO Mineral |
| Reach adjust_Toolless | ✔ |
| Reach Adjust Type | Toolless |
| Recommended brake caliper | BR-M8100, BR-M8120 |
| Servo wave mechanism | ✔ |
| Compatible shifting lever mount_Clamp band | ✔ |
| MODEL NO | BR-M8100 |
|---|---|
| SERIES | SHIMANO DEORE XT M8100 Series |
| Color | Series color |
| Average weight | 392 g |

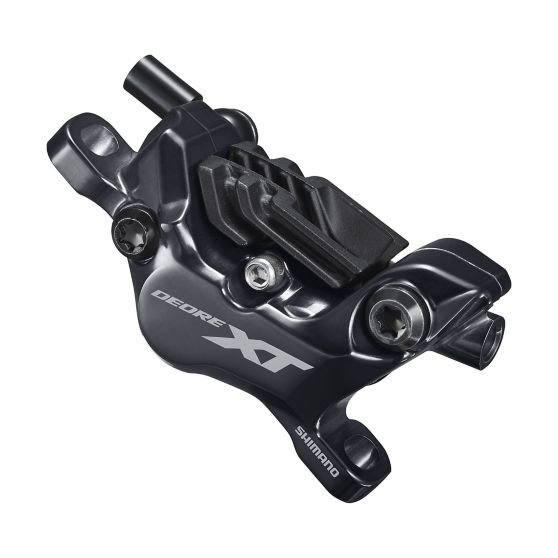

PRODUCT SPECIFICATIONS - CALIPER
| MODEL NO | BR-M8120 |
|---|---|
| SERIES | SHIMANO DEORE XT M8100 Series |
| Color | Series color |
| Average weight | 410 g |
| Brake hose color (kit) | Black |
|---|---|
| Brake hose (kit) | SM-BH90-SBM |
| Brake Type | Hydraulic disc brake |
| Caliper fixing bolt_Anti loosen method | Snap ring |
| Caliper fixing bolt_Tool size | 5 mm |
| Hose joint | Banjo |
| J-Kit spec (for OEM) | ✔ |
| Mount type(available for IS mount with mount adapter) | Post-type |
| Oil | SHIMANO Mineral |
| Pad_Option | D03S Resin (w/o fin), D02S Metal (w/o fin) |
| Pad_Standard | N03A Resin (w/ fin), N04C Metal (w/ fin) |
| Pad mount | Pad axle |
| Piston | 4 |
| Recommended brake lever | BL-M8100 |
| Recommended brake rotor | RT-MT800 |
| Ice technology pad compatible caliper | ✔ |
