Sold Out

Shimano Deore XT FC-M8100 Crankset

Shimano
$215.00
Length :
Terms & conditions

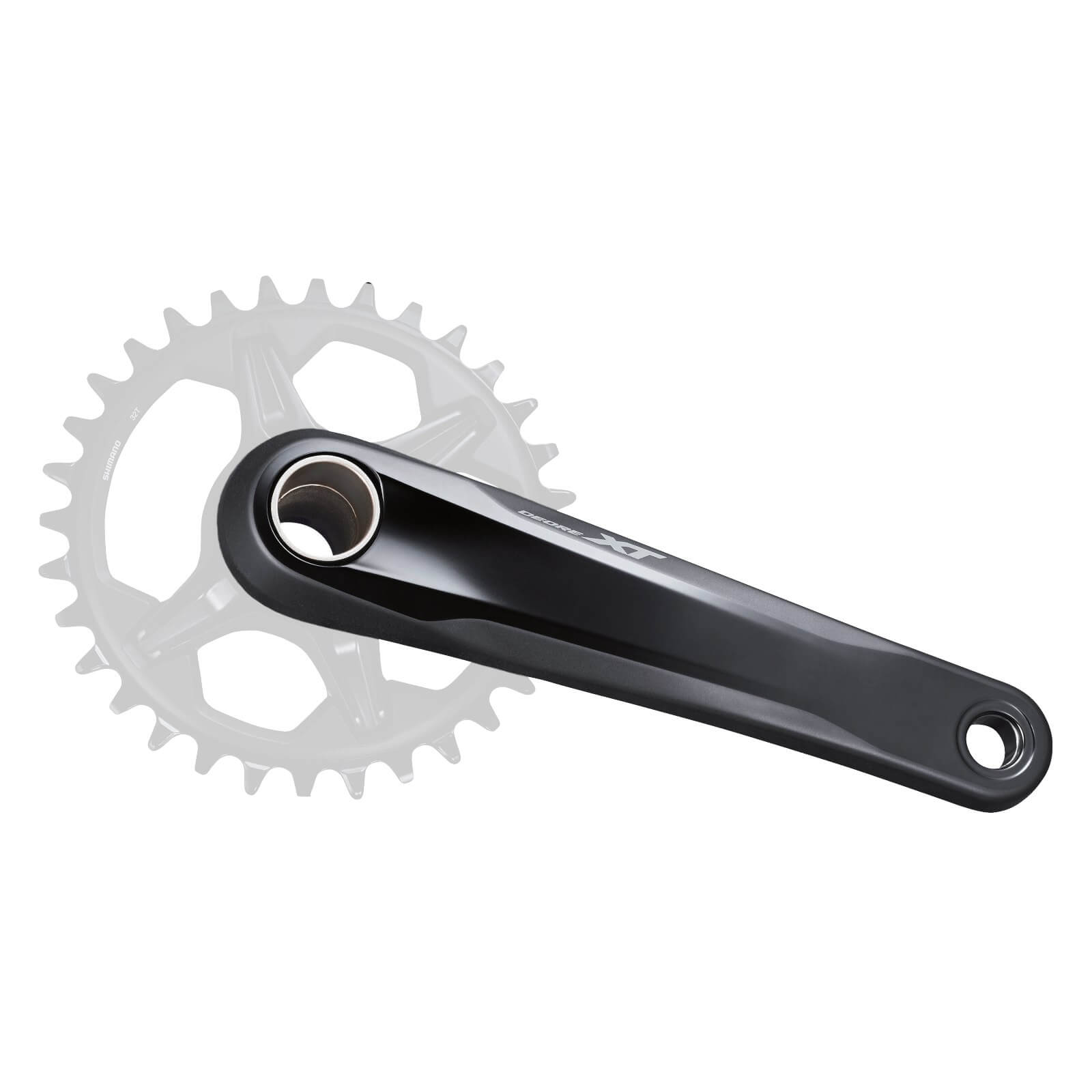

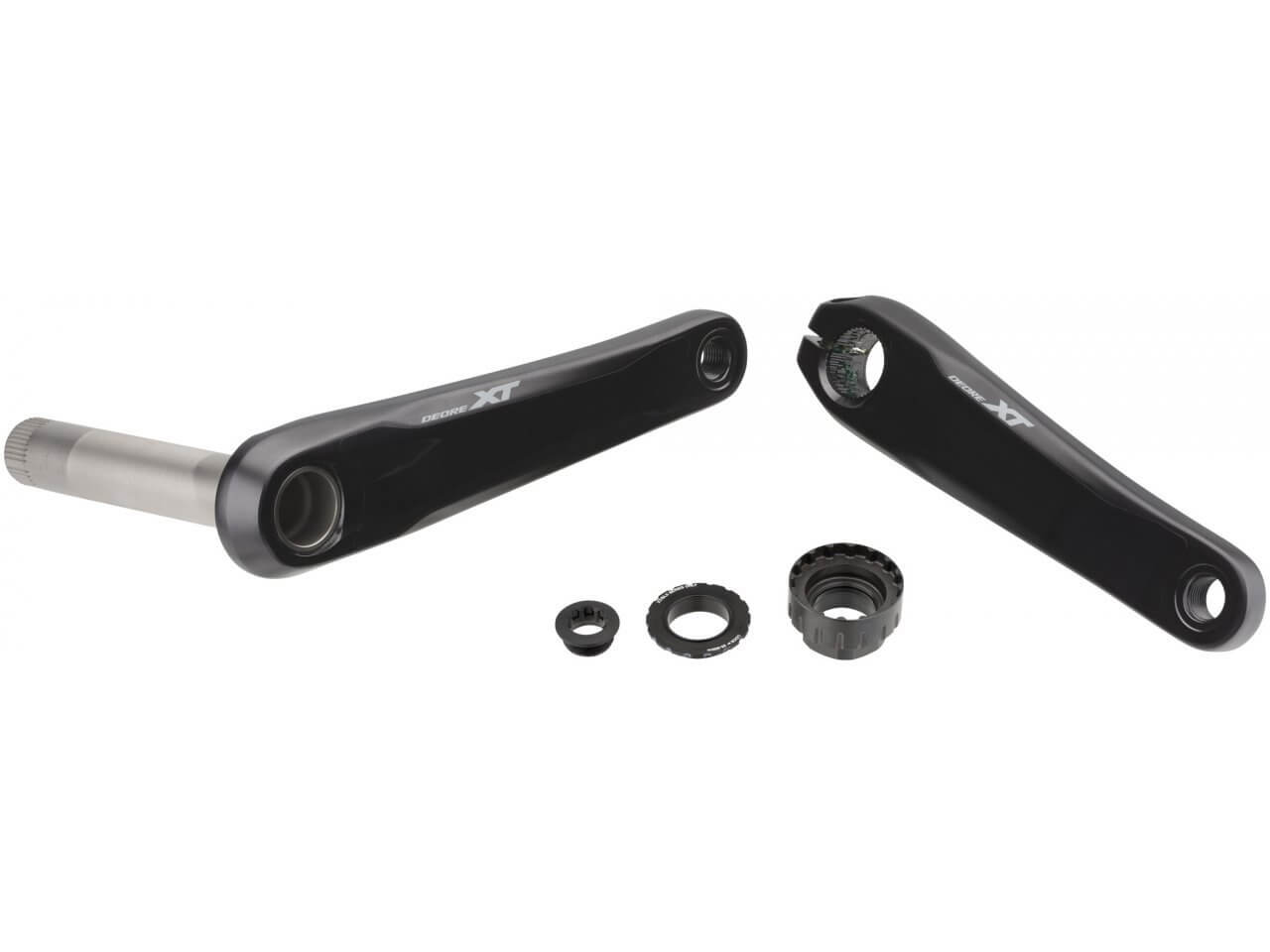

Shimano Deore XT FC-M8100 Crankset

FC-M8100-1

PURCHASE CHAINRING HERE!

SHIMANO DEORE XT - HOLLOWTECH II - MTB Crankset - 172 mm Q-Factor - 1x12-speed

The SHIMANO DEORE XT FC-M8100-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 172mm Q-factor.

  • Superior chain retention
  • Special MTB gear teeth profile improves chain engagement and retention
  • DYNAMIC CHAIN ENGAGEMENT+
  • Rigid and lightweight design for aggressive trail riding
  • Hollow forged crank maximizes power transfer while limiting weight
  • HOLLOWTECH II
  • Q-factor: 172 mm
  • Chainline: 52 mm
  • Weight: 608 g (28T), 622 g (30T), 620 g (32T), 633 g (34T), 651 g (36T)
  • IFCM81001CXXT

Technical details of the 1x12-speed crank:

  • chainline: 52 mm
  • Q-Factor: 172 mm
  • Recommended rear O.L.D.: 142 / 148 mm (Boost)

PRODUCT SPECIFICATIONS

MODEL NO FC-M8100-1
SERIES DEORE XT M8100 Series
Color Series color
Average weight 651 g (36T), 633 g (34T), 620 g (32T), 622 g (30T), 608 g (28T)
Chain line (mm) 52
Chain ring combination 28T, 30T, 32T, 34T, 36T
Compatible BB type_Outboard
Compatible chain HG 12-speed
Crank fixing bolt included
Crank arm length (mm)_165.0
Crank arm length (mm)_170.0
Crank arm length (mm)_175.0
Crank arm length (mm)_180.0
Gear arms 4 arm
HOLLOWTECH II
Optional chain guard_Without chain / bash guard
P.C.D. (mm) Direct
Rear speeds 12
Recommended BB_Pressfit BB-MT800-PA
Recommended BB_Threaded (normal) BB-MT800
Threaded BB shell width_68mm
Threaded BB shell width_73mm
Q-factor (mm) 172
